LASER WELDING

Laser welding is a process which enables the assembling of two parts thanks to a high density of energy :

this creates a capillary made of molten material and metal vapour.

L

Very fast process time

L

Contactless welding

L

No consumable

L

Very good accuracy and fineness of the welded spot

L

Welding of heterogeneous materials is possible

K

High initial investment

K

Parts positioning very accurate

K

High security risks level

Discover the other TECHNAX joining technologies : resistance welding, induction brazing, combrazing, ultrasonic welding, RFSSW.

LASER WELDING EXAMPLES

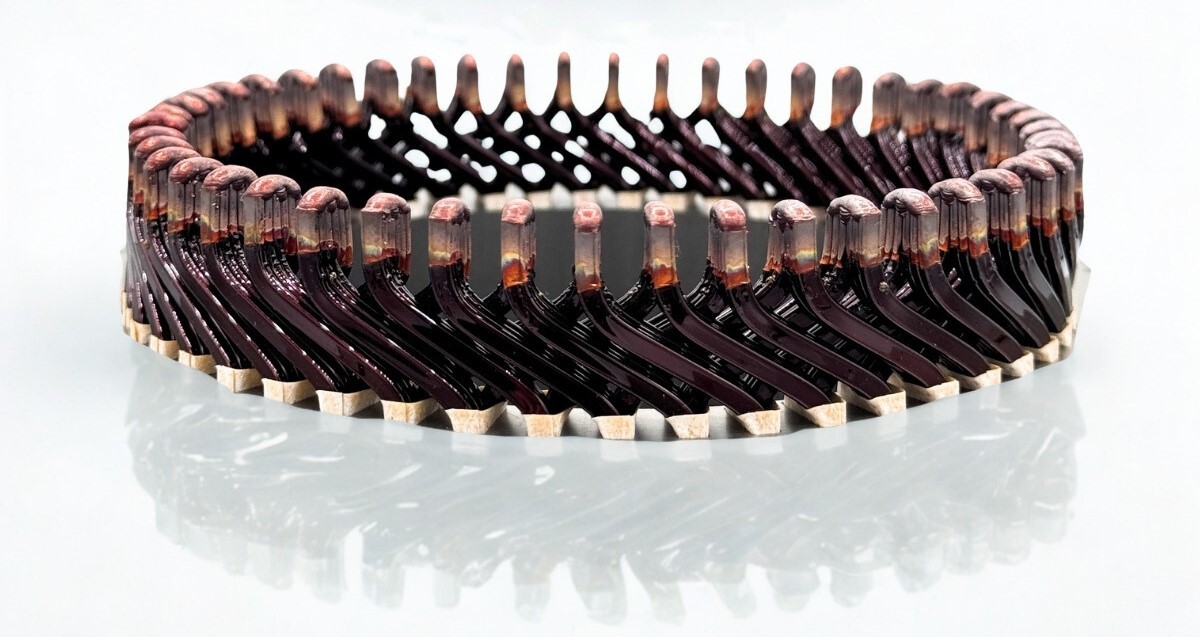

Hairpin Stator 4 crowns

Hairpin stator welding
4 crowns

Shunt / copper clump

Pre-brazing operation of a copper busbar

Laser welding of 2 copper busbars

Laser welding of two copper busbars (x3)

Hairpin Stator 4 crowns

Hairpin stator welding
4 crowns

Laser welding of pins on copper busbar

Shunt / copper clump

Pre-brazing of silver pad on copper busbar

Pre-brazing operation of a copper busbar

Laser welding of copper busbars

Laser welding of two copper busbars (x3)

LASER WELDING MACHINES

Laser welding machine


Laser welding machine
